SEC-E9 Calibrates dimple key clamps and cuts dimple key

Here are the video guides on calibrate dimple key clamp and cut dimple key by SEC-E9 full automatic duplicate key cutting machine.

Locksmith Tool SEC-E9  Key Cutting Machine Features:
Built-in database, supports key missing teeth inquiry;
Embedded 8” capacitive tablet. Light weight, small size, easy to work out;
Equipped with 2 spindle belts, decoder and cutter;
Interpretation and cutting can be completed at one time;
Supports plain milling key, face milling key, Allen key(F021), Stiletto key and Cylinders key;
Supports network remote upgrade, no need to return to factory;
Repairs the wear keys to recover the original precision.
Update online (DO NOT connect to network)
Support Multi-language: English, Spanish,French,German,Italian,Korean,Portuguese,Russian, Turkish, Czech

How to Calibrate SEC-E9 Key Cutting Machine Dimple Key Clamp
How to cut dimple key by SEC-E9 key cutting machine

Tuesday, February 28, 2017

How to cut Toyota Camry Key via SEC-E9 Key Cutter

The Miracle A9 clone version- SEC-E9 key cutting machine is released recently but works perfect? Today, technicians working for obdii365.com test the SEC-E9 portable laser key cutter to cut a new key.

Key to: Toyota Camry
Steps: search codes- cut the key

How to search codes with the instacode
this is the Toyota key code plate
Toyota-key-code-plate
open the instacode software
input the key code of the plate into the “Code”
select the manufaturer and model as Toyota and Camry to the car key accoding to the car key
press enter
double click on the top display shown on the instacode
the searched key biting number will be displayed
key biting number 1
key biting number 2
How to cut a key using the SEC-E9 machine
press “Automobile”
select-Automobile
select Toyota
select-Toyota
Camry
select-camry
2016~ [10]
select-year
press “Input”
press-input
input the key biting number searched from instacode and press OK
input-key-bitting-number
input-key-bitting-number-2

input-key-bitting-number-3
input-key-bitting-number-3
fix a new key blank on the automobile key clamp (#1 clamp)
input-key-on-clamp
press “Cut” and adjust parameter on the next page
adjust-parameter-1
adjust-parameter-2
adjust-parameter-3
press “Cut” to start cutting (close the safe guard)
start-cutting-1
start-cutting-2
cutting is done
open the safe guard and clear chippings on the clamp
use the new key to open the lock to check if it works.

How to add Key Data to SEC-E9 CNC Key Cutting Machine

Here is the step-by-step instruction on how to add key data to SEC-E9 CNC automatic key cutting machine.
SEC-E9 key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.

How to add key data to SEC-E9 by user?
Power on the SEC-E9 key cutter
Click “my key information” button at left bottom on the home page to go to next page.
my-key-info
Please click “create new” button at right bottom on screen.
create-new
Please pay attention to alerts, and please click “OK” button if you are familiar with details of key
Click input field at upper right, then click the right keyboard button
click the right keyboard
Input new needed manufacturers of keys, locks or cars, then click “OK” button
input-key-maker
please click “Add” button to add manufacturer name to left list
Input new needed models of keys, locks or cars
enter-model-of-key
click “Add” button to add input model to list
Select model you added, then click Next bottom

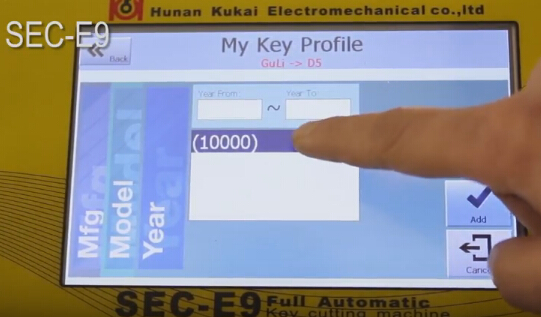

Then input model production year (Year from and Year to)
input model production year
Click “Add new” button
Select the new option and click “select card” button
select card
Input key information according step by step
Input key information
Then select Create & Select button
Then go to next page, you will see a data ID number in list
data ID number
Click “Add” button, and it means you finish adding data.
Click “View information” button to view input data.
View information
Back to SEC-E9 key cutting machine home page and enter “my key information” page, and you will find the added manufacturer and model
see-key-data-added-1
see-key-data-added-2
see-key-data-added-3
You can start to cut keys if the data is correct.

Sunday, February 26, 2017

SEC-E9 Key Cutting Machine Supported Key Type List

SEC-E9 automotive key cutting machine is able to cut various types of keys, incdluing car keys, motorcycles keys,truck keys, household keys, punch keys, tubular keys etc.

Here is the key list of SEC-E9
SEC-E9-car-key-list-1

SEC-E9-car-key-list-2

SEC-E9-car-key-list-3

SEC-E9-car-key-list-4

SEC-E9-car-key-list-5
SEC-E9 support household keys list:
SEC-E9-household-key-list

SEC-E9-household-key-list-1

SEC-E9-household-key-list-2

SEC-E9-household-key-list-3

SEC-E9-household-key-list-4

SEC-E9-household-key-list-5

SEC-E9-household-key-list-6

SEC-E9-household-key-list-7

SEC-E9-household-key-list-8

SEC-E9-household-key-list-9

SEC-E9-household-key-list-10

SEC-E9-household-key-list-12

SEC-E9-household-key-list-13
SEC-E9 key cutter support motorcycle key list:
SEC-E9-motorcycle-key-list
SEC-E9 key cutter support punch key list:
SEC-E9-punch-key-list-1

SEC-E9-punch-key-list-2

SEC-E9-punch-key-list-3

SEC-E9-punch-key-list-4

SEC-E9-punch-key-list-5
SEC-E9 support tubular key list:
sec-e9-tubular-key-list
SEC-E9 support key clamps:
sec-e9-key-clamps
